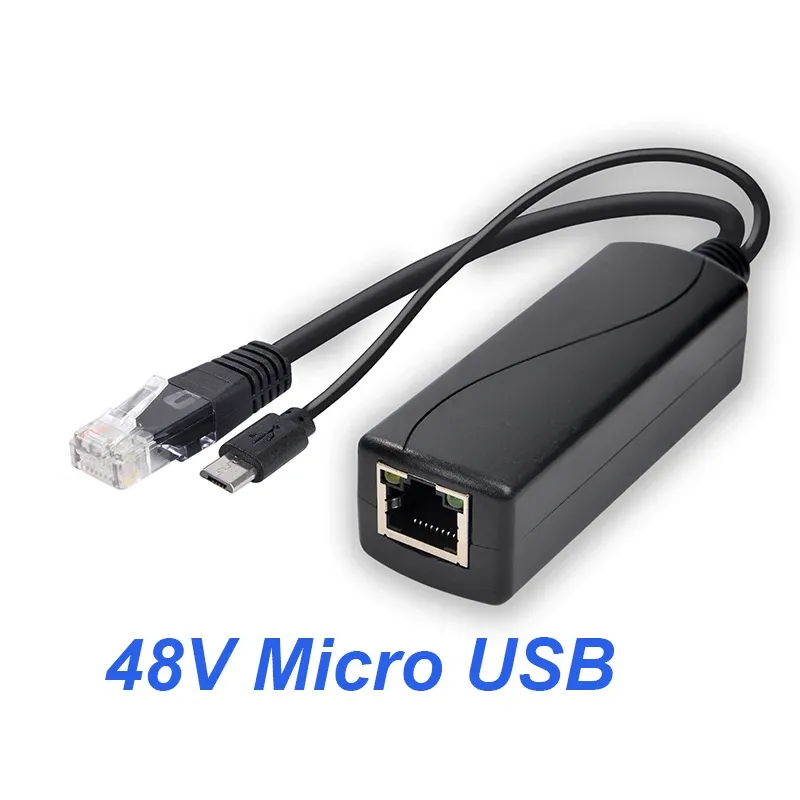

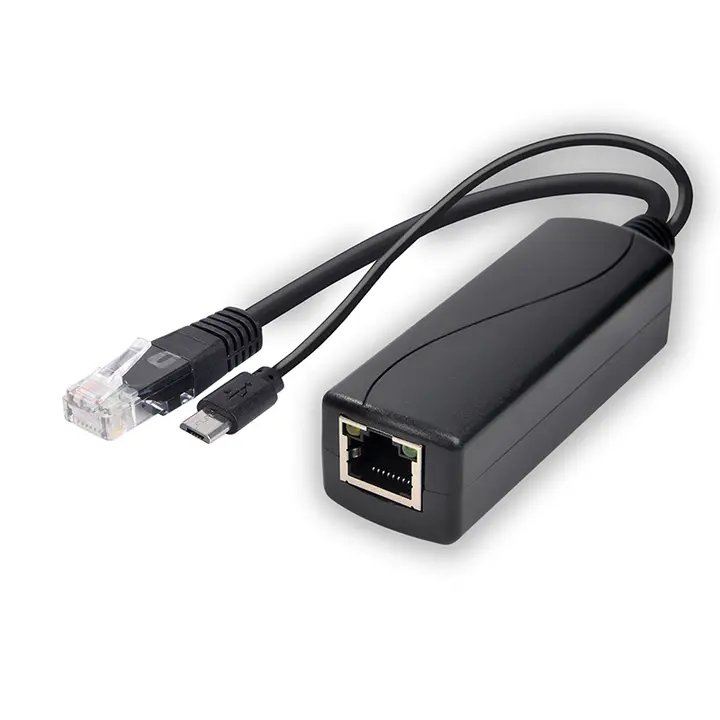

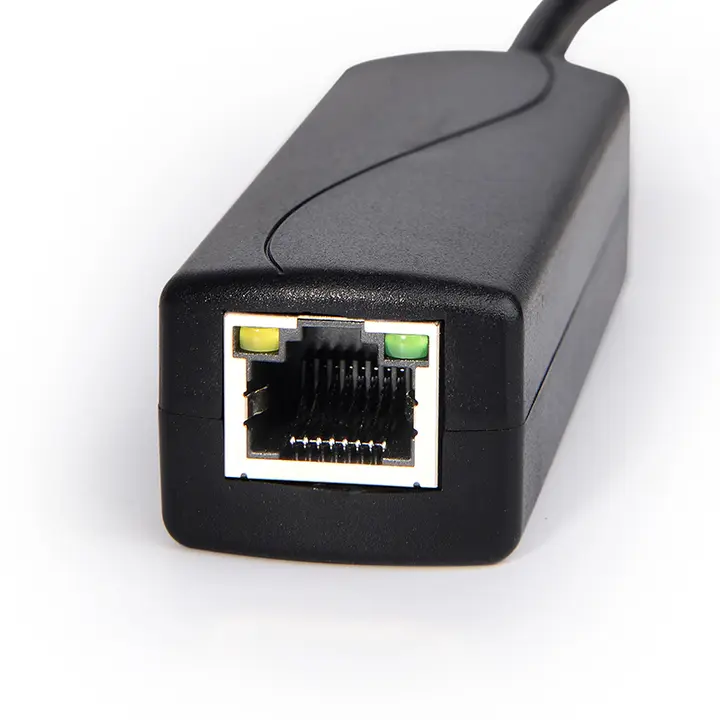

POE Splitter 48V To 5V 12V Micro USB tpye-C BarrelJack Power Supply for Huawei for Hikvision for Bobcat for Raspberry Pi

48VPoE Splitter 5v POE usb tpye-C Power Over Ethernet 48V To 5V Active POE Splitter Micro USB tpye-C Plug for Raspberry Pi

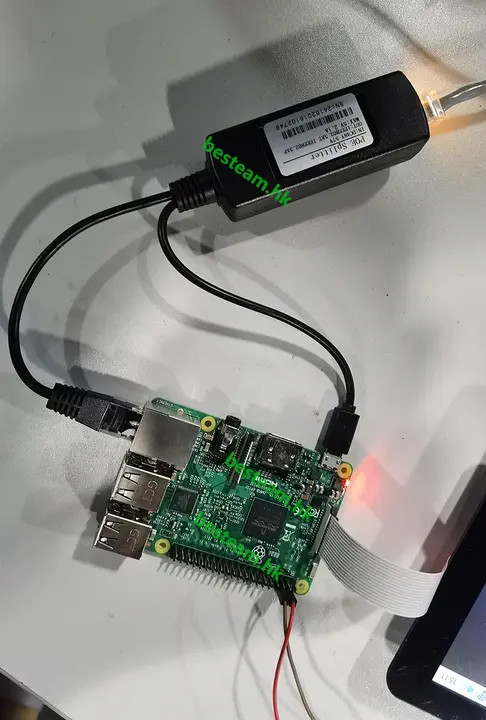

IEEE 802.3af Micro USB Active PoE Splitter Power Over Ethernet 48V To 5V for Tablet Dropcam or Raspberry Pi

• Compliant with IEEE802.3af / at
• Isolation: 2.5kV
• Power Input: DC 44~57V

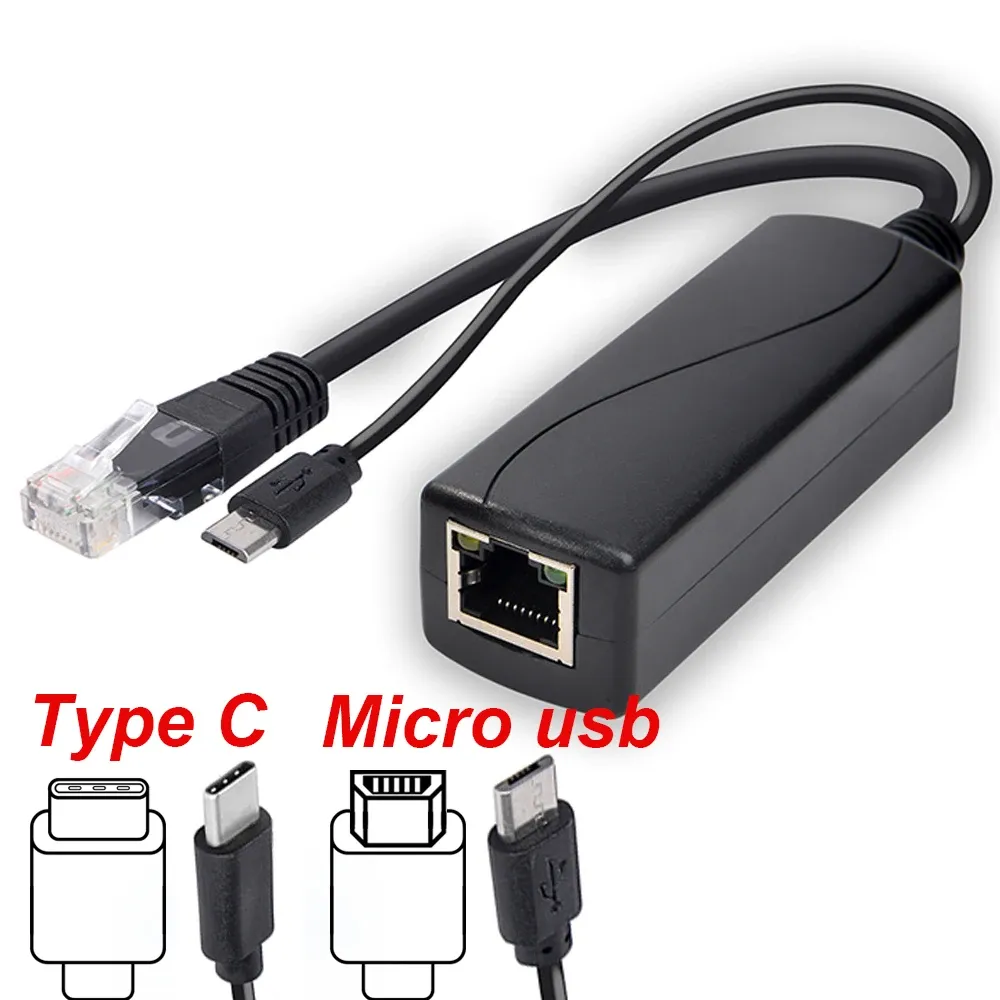

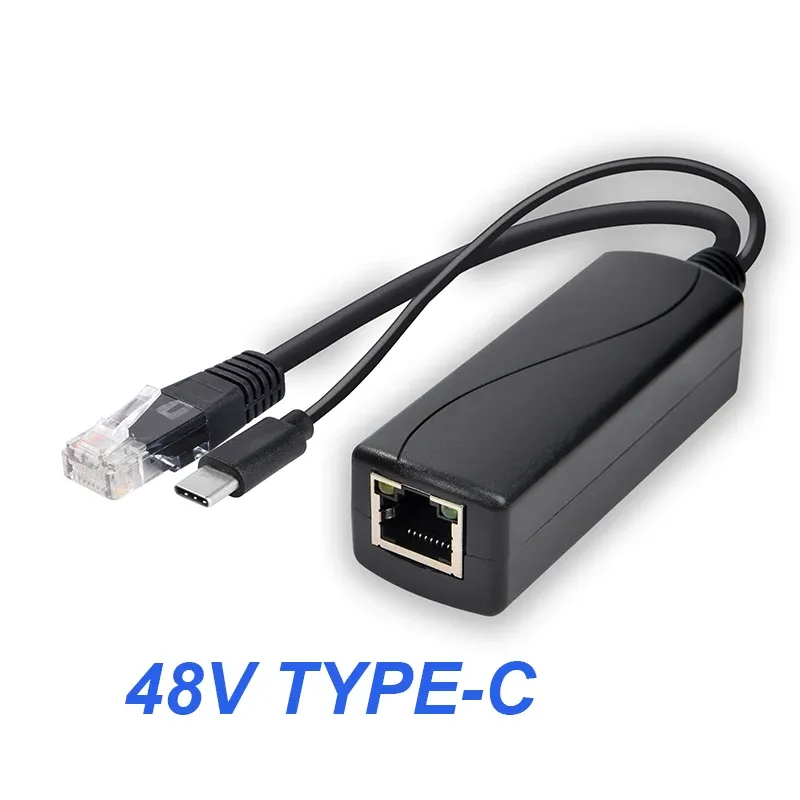

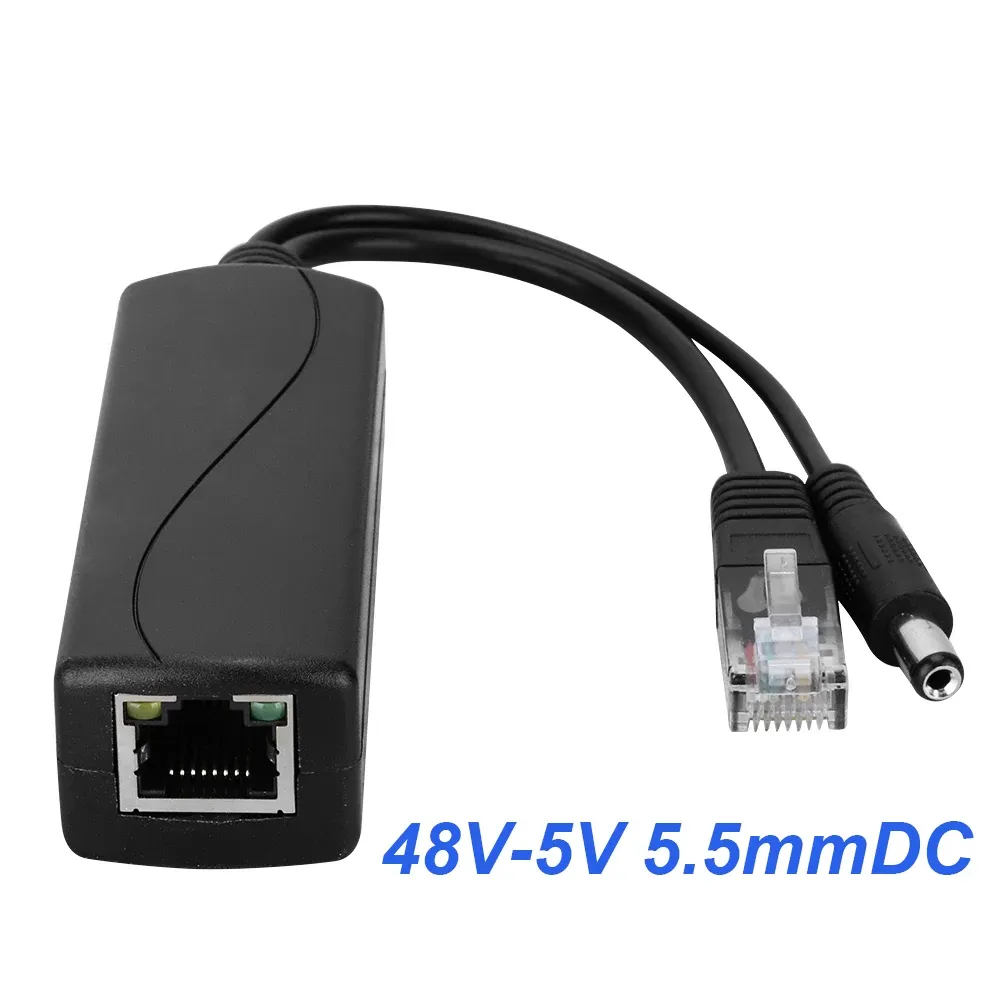

• Power Output: DC 12V/DC 5V/Micro USB/Type-C
• Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
• Data Output Port: RJ45 Male
• Max Transmission distance: 150Meters (Depends on the quality of RJ45 Cable)
• Data Transfer Rate: 10/100/1000Mbps (Only the Gigabit Version is 1000Mbps)
• Devices will be detected before poe input
• Power Pin: support both 1/2(+),3/6(-) and 4/5(+),7/8(-)
• Size: 82 x 28.5x 23 mm
• DC cable length: 215mm
• RJ45 Modular Plug cable length: 220mm
• Weight : 65g

Overview

With RJ45 port and DC port with Micro USB.

it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.

PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line

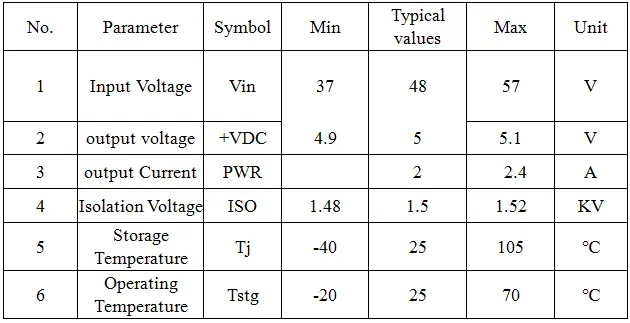

Technical Parameters

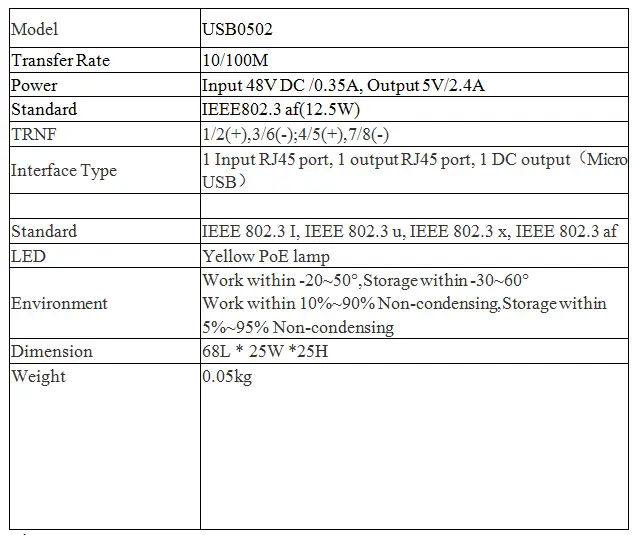

The main parameters：
